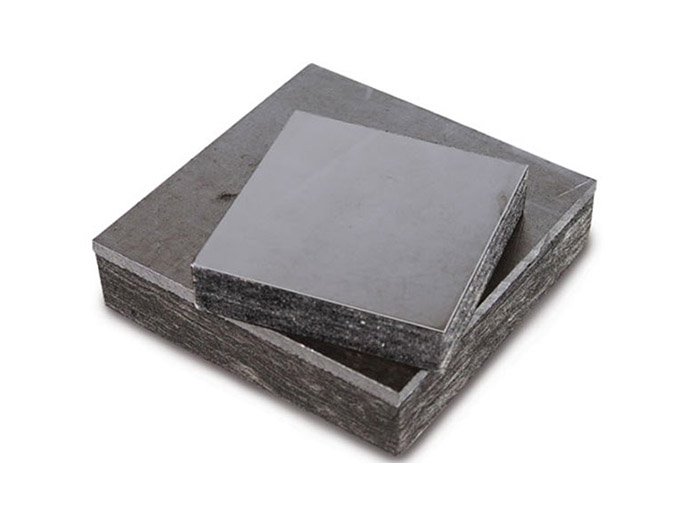

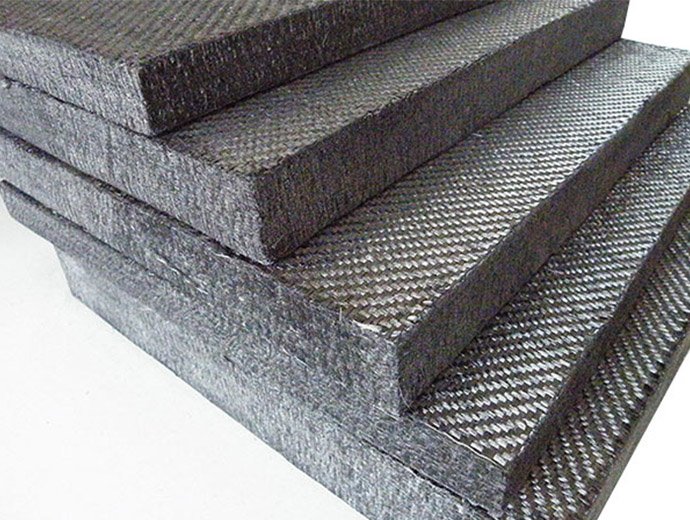

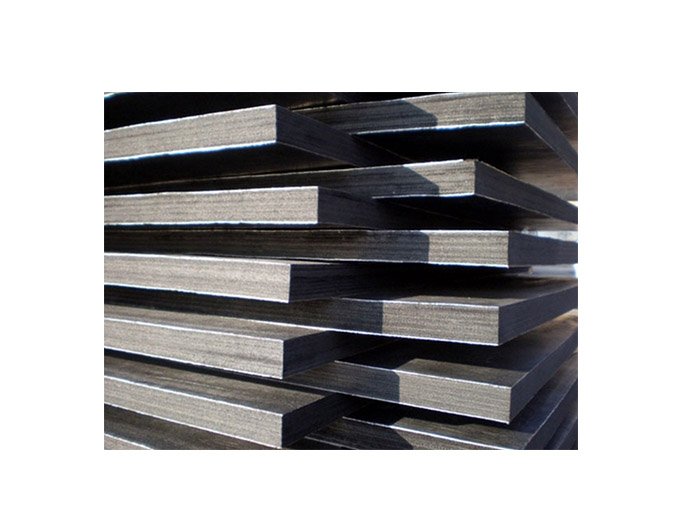

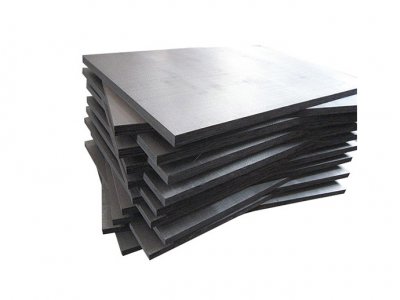

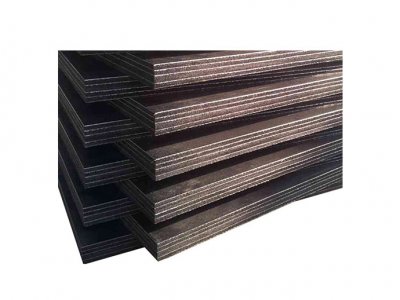

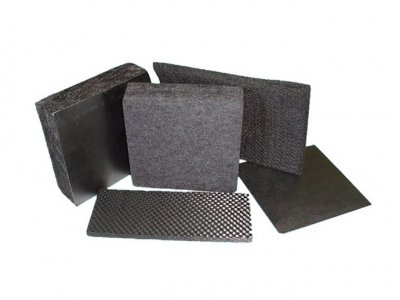

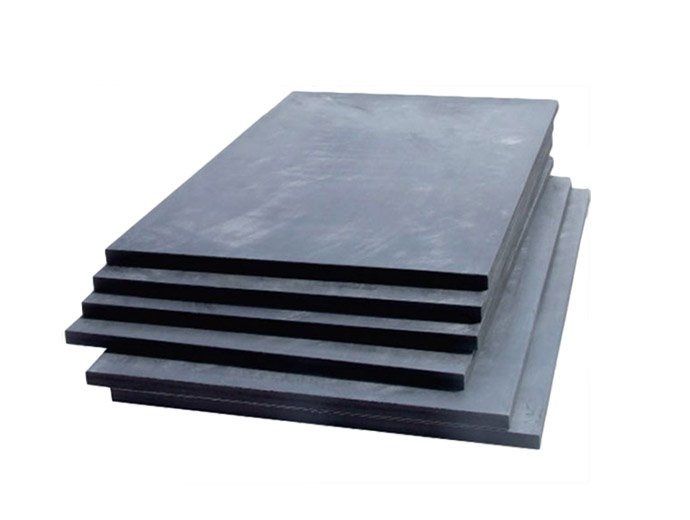

The material is formed by integrating carbon felt, graphite foil or carbon cloth , then subjecting them into the second times of high temperature purification treatment. The material is superior in ablation resistance performance, thermal shock resistance performance, airflow washing resistance performance and thermal insulation performance.
Grade | JP-PA | |
Density (g/cm3) | 0.16-0.20 | |
Ash (ppm) | ≦300 | |
Thermal conductivity (w/mk) | 0.2 | |
Electric resistance (mm2/m) | 35-45 | |
Process temperature (℃) | 2400 | |
Operation temperature (℃) | Air | ≦400 |
Vacuum | ≦2400 | |
Inert gas | ≦3400 | |
Length (mm) | 1500-1700 | |
Width (mm) | 1000-1250 | |
Thickness (mm) | 20-240 | |
Standard size (mm) | 1500*1000*40 | |
